SAF47齒輪減速機馬達詳細信息

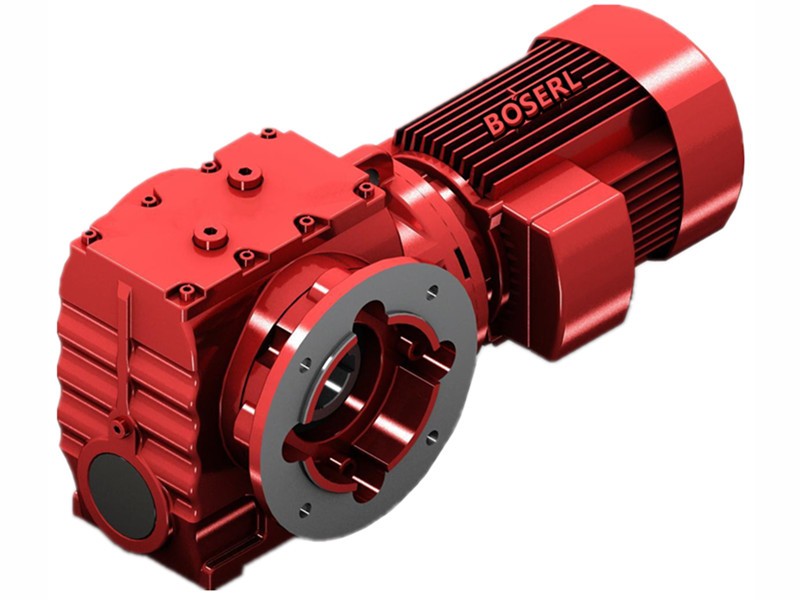

SAF47齒輪減速機馬達
訂購熱線：13360667204
關鍵詞：SAF47齒輪減速機馬達_SAF47Y0.25KW_SAF47Y0.37KW_SAF47齒輪減速機_SAF47齒輪減速機生產廠家_SAF47齒輪減速機廠家
SAF47Y0.25KW減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF47Y0.25KW | 201.00 | 0.25KW | 6.50rpm | 205N.m | 20kg | 5120N | 0.80 |
| SAF47Y0.25KW | 184.80 | 0.25KW | 7.00rpm | 194N.m | 20kg | 5210N | 0.85 |
| SAF47Y0.25KW | 158.12 | 0.25KW | 8.20rpm | 170N.m | 20kg | 5340N | 1.00 |
| SAF47Y0.25KW | 137.05 | 0.25KW | 99.50rpm | 150N.m | 20kg | 5440N | 1.10 |
| SAF47Y0.25KW | 128.10 | 0.25KW | 10.0rpm | 141N.m | 20kg | 5480N | 1.20 |
| SAF47Y0.25KW | 110.73 | 0.25KW | 12.0rpm | 124N.m | 20kg | 5560N | 1.35 |
| SAF47Y0.25KW | 94.08 | 0.25KW | 14.0rpm | 108N.m | 20kg | 5630N | 1.55 |
| SAF47Y0.25KW | 84.00 | 0.25KW | 15.0rpm | 98N.m | 20kg | 5670N | 1.70 |
| SAF47Y0.25KW | 71.75 | 0.25KW | 18.0rpm | 85N.m | 20kg | 5720N | 1.95 |
| SAF47Y0.25KW | 69.39 | 0.25KW | 19.0rpm | 97N.m | 20kg | 5640N | 1.60 |
| SAF47Y0.25KW | 67.20 | 0.25KW | 19.0rpm | 80N.m | 20kg | 5740N | 2.10 |
| SAF47Y0.25KW | 63.80 | 0.25KW | 20.0rpm | 90N.m | 20kg | 5670N | 1.70 |
| SAF47Y0.25KW | 54.59 | 0.25KW | 24.0rpm | 78N.m | 20kg | 5720N | 2.00 |
| SAF47Y0.25KW | 47.32 | 0.25KW | 27.0rpm | 68N.m | 20kg | 5760N | 2.30 |
SAF47Y0.37KW減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF47Y0.37KW | 137.05 | 0.37KW | 10.0rpm | 210N.m | 20.5kg | 5110N | 0.80 |
| SAF47Y0.37KW | 128.10 | 0.37KW | 11.0rpm | 198N.m | 20.5kg | 5180N | 0.85 |
| SAF47Y0.37KW | 110.73 | 0.37KW | 12.0rpm | 175N.m | 20.5kg | 5320N | 0.95 |
| SAF47Y0.37KW | 94.08 | 0.37KW | 15.0rpm | 151N.m | 20.5kg | 5430N | 1.10 |
| SAF47Y0.37KW | 84.00 | 0.37KW | 16.0rpm | 137N.m | 20.5kg | 5500N | 1.20 |
| SAF47Y0.37KW | 71.75 | 0.37KW | 19.0rpm | 119N.m | 20.5kg | 5580N | 1.40 |
| SAF47Y0.37KW | 69.39 | 0.37KW | 20.0rpm | 136N.m | 20.5kg | 5460N | 1.15 |
| SAF47Y0.37KW | 67.20 | 0.37KW | 21.0rpm | 112N.m | 20.5kg | 5610N | 1.50 |
| SAF47Y0.37KW | 63.80 | 0.37KW | 22.0rpm | 126N.m | 20.5kg | 5510N | 1.25 |
| SAF47Y0.37KW | 54.59 | 0.37KW | 25.0rpm | 109N.m | 20.5kg | 5590N | 1.40 |
| SAF47Y0.37KW | 47.32 | 0.37KW | 29.0rpm | 96N.m | 20.5kg | 5410N | 1.60 |
| SAF47Y0.37KW | 44.22 | 0.37KW | 31.0rpm | 90N.m | 20.5kg | 5330N | 1.75 |
| SAF47Y0.37KW | 38.23 | 0.37KW | 36.0rpm | 78N.m | 20.5kg | 5140N | 2.00 |
| SAF47Y0.37KW | 32.48 | 0.37KW | 42.0rpm | 67N.m | 20.5kg | 4930N | 2.30 |
| SAF47Y0.37KW | 29.00 | 0.37KW | 48.0rpm | 60N.m | 20.5kg | 4790N | 2.60 |
| SAF47Y0.37KW | 24.77 | 0.37KW | 56.0rpm | 52N.m | 20.5kg | 4590N | 3.00 |
| SAF47Y0.37KW | 23.20 | 0.37KW | 59.0rpm | 49N.m | 20.5kg | 4510N | 3.10 |
| SAF47Y0.37KW | 20.33 | 0.37KW | 68.0rpm | 46N.m | 20.5kg | 4180N | 2.40 |
| SAF47Y0.37KW | 17.62 | 0.37KW | 78.0rpm | 40N.m | 20.5kg | 4030N | 2.80 |
| SAF47Y0.37KW | 16.47 | 0.37KW | 84.0rpm | 37N.m | 20.5kg | 3960N | 3.00 |
SAF47齒輪減速機馬達類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

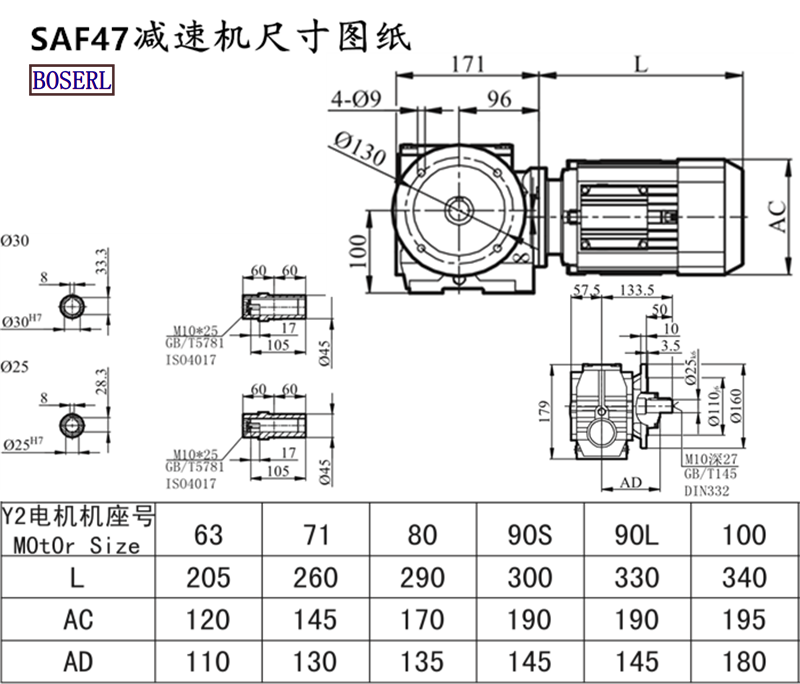

SAF47齒輪減速機馬達安裝尺寸圖紙
SAF47齒輪減速機馬達生產工廠展示：看廠請提前三天預約
法蘭式減速機應用案例展示：
關鍵詞:伺SAF系列減速機_法蘭式減速器與電機_法蘭式減速機_旋轉減速電機_懸掛式減速機_懸掛式電機減速器一套_SAF系列減速機生產廠家
SAF系列減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97
SAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
