RF47DV80S4詳細信息
RF47DV80S4
訂購熱線：13360667204
關鍵詞：15KW380伏減速電機_RF47DV80S4_RF47DRN80S4
RF47DV80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF47DV80S4 | 93.68 | 0.55KW | 15.0rpm | 355N.m | 25kg | 3610N | 0.85 |
| RF47DV80S4 | 84.90 | 0.55KW | 16.0rpm | 320N.m | 25kg | 5290N | 0.95 |
| RF47DV80S4 | 76.23 | 0.55KW | 18.0rpm | 290N.m | 25kg | 5470N | 1.05 |
| RF47DV80S4 | 68.54 | 0.55KW | 20.0rpm | 260N.m | 25kg | 5610N | 1.15 |
| RF47DV80S4 | 64.21 | 0.55KW | 21.0rpm | 240N.m | 25kg | 5690N | 1.25 |
| RF47DV80S4 | 56.73 | 0.55KW | 24.0rpm | 215N.m | 25kg | 5800N | 1.40 |
| RF47DV80S4 | 52.69 | 0.55KW | 26.0rpm | 200N.m | 25kg | 5750N | 1.50 |
| RF47DV80S4 | 47.75 | 0.55KW | 29.0rpm | 182N.m | 25kg | 5610N | 1.65 |
| RF47DV80S4 | 42.87 | 0.55KW | 32.0rpm | 163N.m | 25kg | 5450N | 1.85 |
| RF47DV80S4 | 36.93 | 0.55KW | 37.0rpm | 140N.m | 25kg | 5240N | 2.10 |
| RF47DV80S4 | 34.73 | 0.55KW | 40.0rpm | 132N.m | 25kg | 5160N | 2.30 |
| RF47DV80S4 | 29.88 | 0.55KW | 46.0rpm | 114N.m | 25kg | 4950N | 2.60 |
| RF47DV80S4 | 26.74 | 0.55KW | 52.0rpm | 102N.m | 25kg | 4800N | 3.00 |
| RF47DV80S4 | 23.28 | 0.55KW | 59.0rpm | 89N.m | 25kg | 4610N | 3.40 |
| RF47DV80S4 | 21.81 | 0.55KW | 63.0rpm | 83N.m | 25kg | 4520N | 3.60 |
RF47DRN80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF47DRN80S4 | 93.68 | 0.55KW | 15.0rpm | 355N.m | 25kg | 3610N | 0.85 |
| RF47DRN80S4 | 84.90 | 0.55KW | 16.0rpm | 320N.m | 25kg | 5290N | 0.95 |
| RF47DRN80S4 | 76.23 | 0.55KW | 18.0rpm | 290N.m | 25kg | 5470N | 1.05 |
| RF47DRN80S4 | 68.54 | 0.55KW | 20.0rpm | 260N.m | 25kg | 5610N | 1.15 |
| RF47DRN80S4 | 64.21 | 0.55KW | 21.0rpm | 240N.m | 25kg | 5690N | 1.25 |
| RF47DRN80S4 | 56.73 | 0.55KW | 24.0rpm | 215N.m | 25kg | 5800N | 1.40 |
| RF47DRN80S4 | 52.69 | 0.55KW | 26.0rpm | 200N.m | 25kg | 5750N | 1.50 |
| RF47DRN80S4 | 47.75 | 0.55KW | 29.0rpm | 182N.m | 25kg | 5610N | 1.65 |
| RF47DRN80S4 | 42.87 | 0.55KW | 32.0rpm | 163N.m | 25kg | 5450N | 1.85 |
| RF47DRN80S4 | 36.93 | 0.55KW | 37.0rpm | 140N.m | 25kg | 5240N | 2.10 |
| RF47DRN80S4 | 34.73 | 0.55KW | 40.0rpm | 132N.m | 25kg | 5160N | 2.30 |
| RF47DRN80S4 | 29.88 | 0.55KW | 46.0rpm | 114N.m | 25kg | 4950N | 2.60 |
| RF47DRN80S4 | 26.74 | 0.55KW | 52.0rpm | 102N.m | 25kg | 4800N | 3.00 |
| RF47DRN80S4 | 23.28 | 0.55KW | 59.0rpm | 89N.m | 25kg | 4610N | 3.40 |
| RF47DRN80S4 | 21.81 | 0.55KW | 63.0rpm | 83N.m | 25kg | 4520N | 3.60 |
RF47DV80S4電機減速機類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機

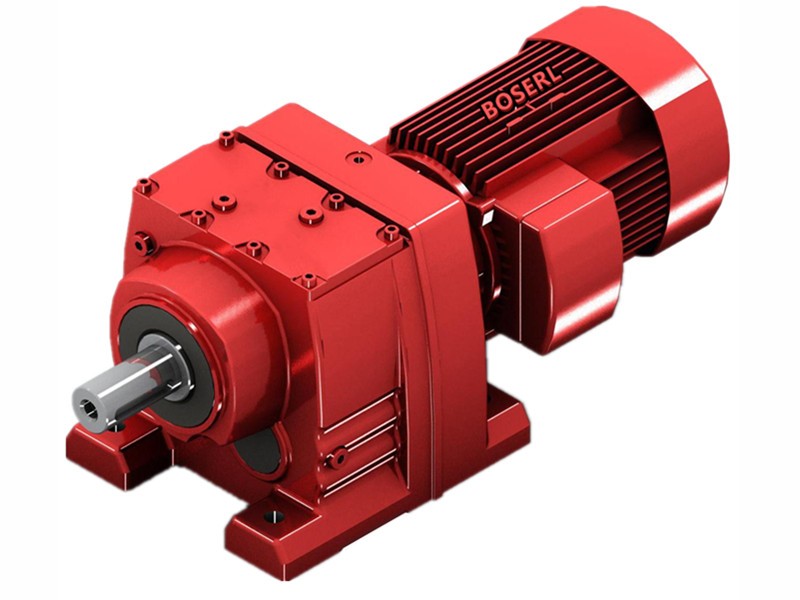

R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機

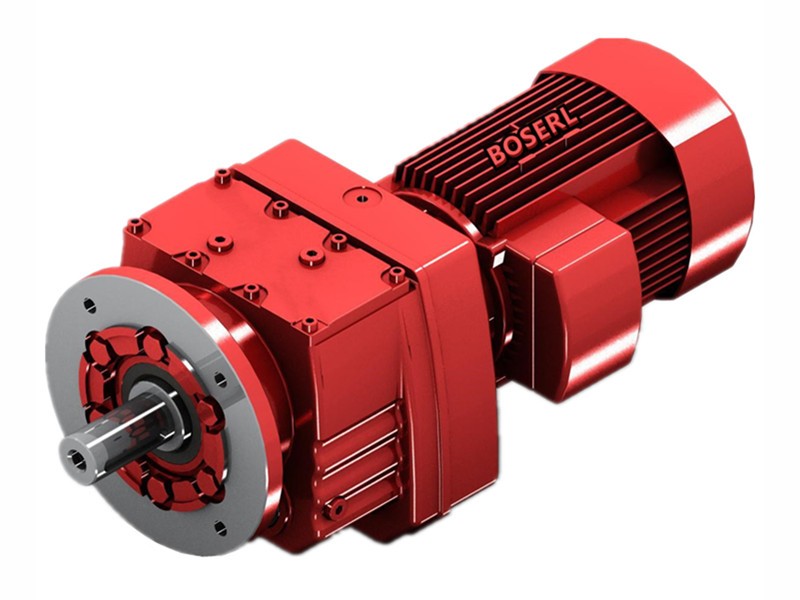

RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

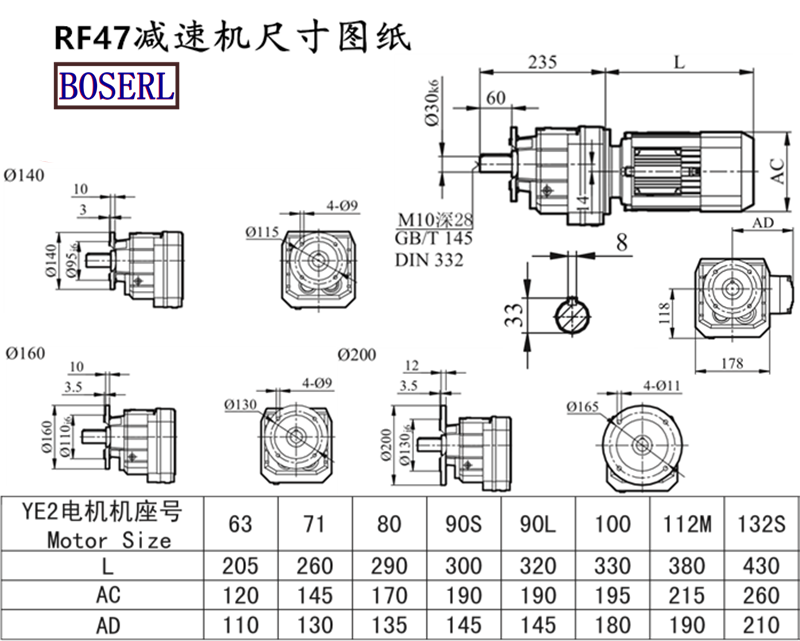

RF47DV80S4電機減速機安裝尺寸圖紙
RF47DV80S4電機減速機生產工廠展示：看廠請提前三天預約
立式減速機應用案例展示：
關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 15KW380伏減速電機 RF47DV80S4 RF47DRN80S4
- 上一條RF47DVE71D4
- 下一條RF47DM80S4
