KF87DRN132MC4詳細信息
KF87DRN132MC4
關鍵詞：輸送84噸負載電機減速機_KF87DRN132MC4_KF87DRN132ML4
KF87DRN132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KF87DRN132MC4 | 86.34 | 5.5KW | 17rpm | 3130N.m | 135Kg | 26700N | 0.85 |
| KF87DRN132MC4 | 79.34 | 5.5KW | 18rpm | 2880N.m | 135Kg | 27000N | 0.95 |
| KF87DRN132MC4 | 70.46 | 5.5KW | 21rpm | 2560N.m | 135Kg | 27500N | 1.05 |
| KF87DRN132MC4 | 63 | 5.5KW | 23rpm | 2280N.m | 135Kg | 27400N | 1.2 |
| KF87DRN132MC4 | 56.64 | 5.5KW | 26rpm | 2050N.m | 135Kg | 27200N | 1.3 |
| KF87DRN132MC4 | 49.16 | 5.5KW | 29rpm | 1780N.m | 135Kg | 26800N | 1.5 |
| KF87DRN132MC4 | 44.02 | 5.5KW | 33rpm | 1600N.m | 135Kg | 26500N | 1.6 |
| KF87DRN132MC4 | 36.52 | 5.5KW | 40rpm | 1320N.m | 135Kg | 25800N | 1.9 |
| KF87DRN132MC4 | 31.39 | 5.5KW | 46rpm | 1140N.m | 135Kg | 25200N | 2.4 |
| KF87DRN132MC4 | 27.88 | 5.5KW | 52rpm | 1010N.m | 135Kg | 24600N | 2.6 |
KF87DRN132ML4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KF87DRN132ML4 | 86.34 | 5.5KW | 17rpm | 3130N.m | 135Kg | 26700N | 0.85 |
| KF87DRN132ML4 | 79.34 | 5.5KW | 18rpm | 2880N.m | 135Kg | 27000N | 0.95 |
| KF87DRN132ML4 | 70.46 | 5.5KW | 21rpm | 2560N.m | 135Kg | 27500N | 1.05 |
| KF87DRN132ML4 | 63 | 5.5KW | 23rpm | 2280N.m | 135Kg | 27400N | 1.2 |
| KF87DRN132ML4 | 56.64 | 5.5KW | 26rpm | 2050N.m | 135Kg | 27200N | 1.3 |
| KF87DRN132ML4 | 49.16 | 5.5KW | 29rpm | 1780N.m | 135Kg | 26800N | 1.5 |
| KF87DRN132ML4 | 44.02 | 5.5KW | 33rpm | 1600N.m | 135Kg | 26500N | 1.6 |
| KF87DRN132ML4 | 36.52 | 5.5KW | 40rpm | 1320N.m | 135Kg | 25800N | 1.9 |
| KF87DRN132ML4 | 31.39 | 5.5KW | 46rpm | 1140N.m | 135Kg | 25200N | 2.4 |
| KF87DRN132ML4 | 27.88 | 5.5KW | 52rpm | 1010N.m | 135Kg | 24600N | 2.6 |

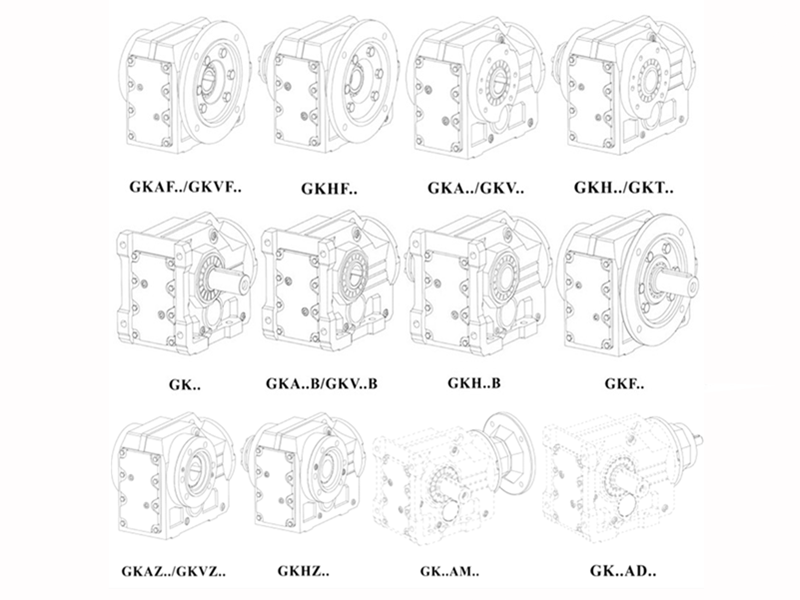

KF87DRN132MC4減速機類型：
K..DR..底腳安裝斜齒輪—傘齒輪減速電機
KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA..DR..空心軸斜齒輪─傘齒輪減速電機
KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機
KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KF87DRN132MC4減速機馬達安裝尺寸圖紙：
KF87DRN132MC4減速機生產工廠展示：看廠請提前三天預約
大功率減速電機應用案例展示：
關鍵詞:KF系列齒輪減速機與電機_大功率減速電機_大負載減速器_大負載減速機電機_大功率電機減速機_大功率電動機減速機_大負載電動機減速機一套生產廠家
KF系列減速機型號：KF37減速機,KF47減速機,KF57減速機,KF67減速機,KF77減速機,KF87減速機,KF97減速機,KF107減速機,KF127減速機,KF157減速機,KF167減速機,KF187減速機
KF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 輸送84噸負載電機減速機 KF87DRN132MC4 KF87DRN132ML4
- 上一條KF87DRE132ML4
- 下一條KF87DRN180LC4
