KA107DRN180LC4詳細信息
KA107DRN180LC4
關鍵詞：200千瓦電動機配減速器_KA107DRN180LC4_KA107DM180LC4
KA107DRN180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KA107DRN180LC4 | 73.3 | 18.5KW | 20rpm | 8860N.m | 395Kg | 42700N | 0.9 |
| KA107DRN180LC4 | 66.52 | 18.5KW | 22rpm | 8040N.m | 395Kg | 44200N | 1 |
| KA107DRN180LC4 | 57.17 | 18.5KW | 26rpm | 6910N.m | 395Kg | 45700N | 1.15 |
| KA107DRN180LC4 | 49.9 | 18.5KW | 29rpm | 6030N.m | 395Kg | 46600N | 1.3 |
| KA107DRN180LC4 | 42.33 | 18.5KW | 34rpm | 5120N.m | 395Kg | 46300N | 1.45 |
| KA107DRN180LC4 | 37 | 18.5KW | 39rpm | 4470N.m | 395Kg | 45700N | 1.6 |
| KA107DRN180LC4 | 32.69 | 18.5KW | 45rpm | 3950N.m | 395Kg | 45100N | 1.8 |
| KA107DRN180LC4 | 31.28 | 18.5KW | 47rpm | 3780N.m | 395Kg | 44900N | 1.8 |
| KA107DRN180LC4 | 29 | 18.5KW | 50rpm | 3500N.m | 395Kg | 44400N | 2 |
| KA107DRN180LC4 | 26.32 | 18.5KW | 55rpm | 3180N.m | 395Kg | 43800N | 2.3 |
| KA107DRN180LC4 | 22.62 | 18.5KW | 65rpm | 21730N.m | 395Kg | 42800N | 2.6 |
| KA107DRN180LC4 | 19.74 | 18.5KW | 74rpm | 2380N.m | 395Kg | 41700N | 3 |
| KA107DRN180LC4 | 16.75 | 18.5KW | 87rpm | 2020N.m | 395Kg | 40500N | 3.5 |
KA107DM180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KA107DM180LC4 | 73.3 | 18.5KW | 20rpm | 8860N.m | 395Kg | 42700N | 0.9 |
| KA107DM180LC4 | 66.52 | 18.5KW | 22rpm | 8040N.m | 395Kg | 44200N | 1 |
| KA107DM180LC4 | 57.17 | 18.5KW | 26rpm | 6910N.m | 395Kg | 45700N | 1.15 |
| KA107DM180LC4 | 49.9 | 18.5KW | 29rpm | 6030N.m | 395Kg | 46600N | 1.3 |
| KA107DM180LC4 | 42.33 | 18.5KW | 34rpm | 5120N.m | 395Kg | 46300N | 1.45 |
| KA107DM180LC4 | 37 | 18.5KW | 39rpm | 4470N.m | 395Kg | 45700N | 1.6 |
| KA107DM180LC4 | 32.69 | 18.5KW | 45rpm | 3950N.m | 395Kg | 45100N | 1.8 |
| KA107DM180LC4 | 31.28 | 18.5KW | 47rpm | 3780N.m | 395Kg | 44900N | 1.8 |
| KA107DM180LC4 | 29 | 18.5KW | 50rpm | 3500N.m | 395Kg | 44400N | 2 |
| KA107DM180LC4 | 26.32 | 18.5KW | 55rpm | 3180N.m | 395Kg | 43800N | 2.3 |
| KA107DM180LC4 | 22.62 | 18.5KW | 65rpm | 21730N.m | 395Kg | 42800N | 2.6 |
| KA107DM180LC4 | 19.74 | 18.5KW | 74rpm | 2380N.m | 395Kg | 41700N | 3 |
| KA107DM180LC4 | 16.75 | 18.5KW | 87rpm | 2020N.m | 395Kg | 40500N | 3.5 |

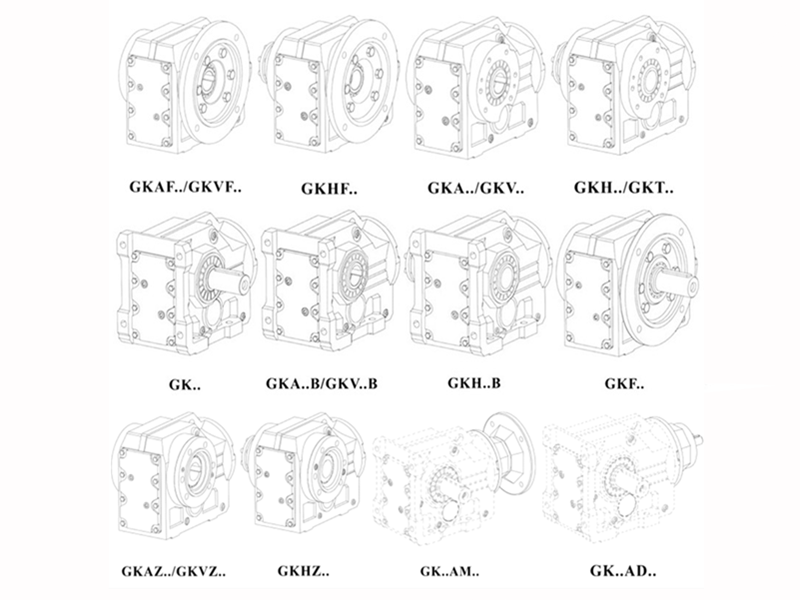

KA107DRN180LC4減速機類型：
K..DR..底腳安裝斜齒輪—傘齒輪減速電機
KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA..DR..空心軸斜齒輪─傘齒輪減速電機
KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機
KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA107DRN180LC4減速機馬達安裝尺寸圖紙：
KA107DRN180LC4減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
雙孔輸出減速電機應用案例展示：
關鍵詞:KA系列減速機與電機_雙孔輸出減速電機一套_雙孔輸出減速機電機_雙孔輸出電機減速機_雙速電動機減速機_通孔減速機_雙速電機減速機生產廠家
KA系列減速機型號：KA37減速機,KA47減速機,KA57減速機,KA67減速機,KA77減速機,KA87減速機,KA97減速機,KA107減速機,KA127減速機,KA157減速機,KA167減速機,KA187減速機
KA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
