FF77DRN132MC4詳細信息
FF77DRN132MC4
訂購熱線：13360667204
關鍵詞：裝截機減速機電機_FF77DRN132MC4_FF77DRN132ML4
FF77DRN132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF77DRN132MC4 | 33.74 | 7.5KW | 44.0rpm | 1640N.m | 163kg | 14700N | 0.90 |
| FF77DRN132MC4 | 29.91 | 7.5KW | 49.0rpm | 1450N.m | 163kg | 16000N | 1.05 |
| FF77DRN132MC4 | 25.54 | 7.5KW | 58.0rpm | 1240N.m | 163kg | 17200N | 1.15 |
| FF77DRN132MC4 | 25.50 | 7.5KW | 58.0rpm | 1240N.m | 163kg | 17200N | 1.20 |
| FF77DRN132MC4 | 21.43 | 7.5KW | 69.0rpm | 1040N.m | 163kg | 18100N | 1.45 |
| FF77DRN132MC4 | 19.70 | 7.5KW | 75.0rpm | 950N.m | 163kg | 18500N | 1.55 |
| FF77DRN132MC4 | 17.49 | 7.5KW | 84.0rpm | 850N.m | 163kg | 18800N | 1.75 |
| FF77DRN132MC4 | 15.64 | 7.5KW | 94.0rpm | 760N.m | 163kg | 18900N | 1.95 |
| FF77DRN132MC4 | 14.06 | 7.5KW | 105rpm | 685N.m | 163kg | 18500N | 2.20 |
| FF77DRN132MC4 | 12.20 | 7.5KW | 120rpm | 590N.m | 163kg | 17900N | 2.50 |
| FF77DRN132MC4 | 10.93 | 7.5KW | 135rpm | 530N.m | 163kg | 17500N | 2.80 |
| FF77DRN132MC4 | 9.30 | 7.5KW | 158rpm | 450N.m | 163kg | 16400N | 2.40 |
| FF77DRN132MC4 | 8.26 | 7.5KW | 178rpm | 400N.m | 163kg | 16000N | 2.70 |
| FF77DRN132MC4 | 7.39 | 7.5KW | 199rpm | 355N.m | 163kg | 15600N | 3.00 |
| FF77DRN132MC4 | 6.64 | 7.5KW | 221rpm | 320N.m | 163kg | 15200N | 3.30 |
| FF77DRN132MC4 | 5.76 | 7.5KW | 255rpm | 280N.m | 163kg | 14700N | 3.80 |
| FF77DRN132MC4 | 5.16 | 7.5KW | 285rpm | 250N.m | 163kg | 14400N | 4.30 |
| FF77DRN132MC4 | 4.28 | 7.5KW | 343rpm | 205N.m | 163kg | 13700N | 4.80 |
FF77DRN132ML4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF77DRN132ML4 | 33.74 | 7.5KW | 44.0rpm | 1640N.m | 163kg | 14700N | 0.90 |
| FF77DRN132ML4 | 29.91 | 7.5KW | 49.0rpm | 1450N.m | 163kg | 16000N | 1.05 |
| FF77DRN132ML4 | 25.54 | 7.5KW | 58.0rpm | 1240N.m | 163kg | 17200N | 1.15 |
| FF77DRN132ML4 | 25.50 | 7.5KW | 58.0rpm | 1240N.m | 163kg | 17200N | 1.20 |
| FF77DRN132ML4 | 21.43 | 7.5KW | 69.0rpm | 1040N.m | 163kg | 18100N | 1.45 |
| FF77DRN132ML4 | 19.70 | 7.5KW | 75.0rpm | 950N.m | 163kg | 18500N | 1.55 |
| FF77DRN132ML4 | 17.49 | 7.5KW | 84.0rpm | 850N.m | 163kg | 18800N | 1.75 |
| FF77DRN132ML4 | 15.64 | 7.5KW | 94.0rpm | 760N.m | 163kg | 18900N | 1.95 |
| FF77DRN132ML4 | 14.06 | 7.5KW | 105rpm | 685N.m | 163kg | 18500N | 2.20 |
| FF77DRN132ML4 | 12.20 | 7.5KW | 120rpm | 590N.m | 163kg | 17900N | 2.50 |
| FF77DRN132ML4 | 10.93 | 7.5KW | 135rpm | 530N.m | 163kg | 17500N | 2.80 |
| FF77DRN132ML4 | 9.30 | 7.5KW | 158rpm | 450N.m | 163kg | 16400N | 2.40 |
| FF77DRN132ML4 | 8.26 | 7.5KW | 178rpm | 400N.m | 163kg | 16000N | 2.70 |
| FF77DRN132ML4 | 7.39 | 7.5KW | 199rpm | 355N.m | 163kg | 15600N | 3.00 |
| FF77DRN132ML4 | 6.64 | 7.5KW | 221rpm | 320N.m | 163kg | 15200N | 3.30 |
| FF77DRN132ML4 | 5.76 | 7.5KW | 255rpm | 280N.m | 163kg | 14700N | 3.80 |
| FF77DRN132ML4 | 5.16 | 7.5KW | 285rpm | 250N.m | 163kg | 14400N | 4.30 |
| FF77DRN132ML4 | 4.28 | 7.5KW | 343rpm | 205N.m | 163kg | 13700N | 4.80 |

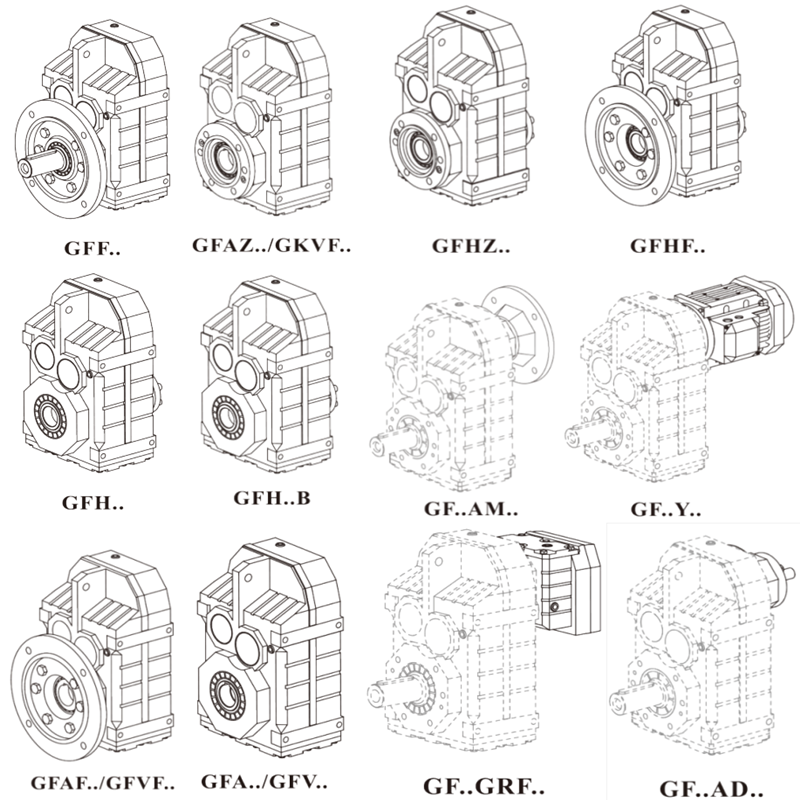

FF77DRN132MC4減速齒輪箱類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

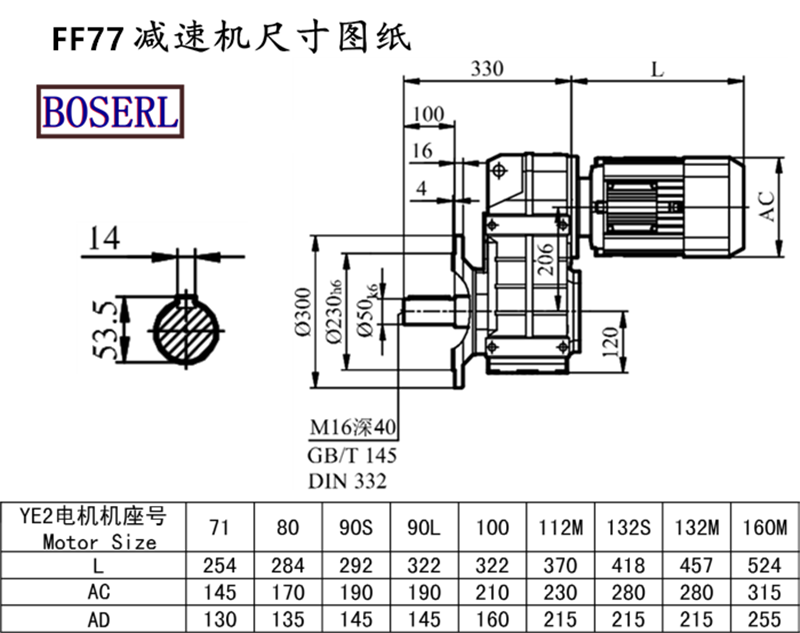

FF77DRN132MC4減速齒輪箱安裝尺寸圖紙
FF77DRN132MC4減速齒輪箱生產廠家，看廠請提前三天預約三項異步調速電機減速機
關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家
FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機
FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 裝截機減速機電機 FF77DRN132MC4 FF77DRN132ML4
