FF57DM71S4詳細信息
FF57DM71S4
關鍵詞：2.2KW電機與減速器一體機_FF57DM71S4_FF57DT71S4
FF57DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF57DM71S4 | 199.70 | 0.25KW | 6.50rpm | 365N.m | 44Kg | 10800N | 1.65 |
| FF57DM71S4 | 183.60 | 0.25KW | 7.10rpm | 335N.m | 44Kg | 10900N | 1.80 |
| FF57DM71S4 | 157.09 | 0.25KW | 8.30rpm | 285N.m | 44Kg | 11200N | 2.10 |
| FF57DM71S4 | 136.16 | 0.25KW | 9.60rpm | 250N.m | 44Kg | 11400N | 2.40 |
| FF57DM71S4 | 127.27 | 0.25KW | 10.0rpm | 230N.m | 44Kg | 11500N | 2.60 |
| FF57DM71S4 | 110.01 | 0.25KW | 12.0rpm | 200N.m | 44Kg | 11500N | 3.00 |
FF57DT71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF57DT71S4 | 199.70 | 0.25KW | 6.50rpm | 365N.m | 44Kg | 10800N | 1.65 |
| FF57DT71S4 | 183.60 | 0.25KW | 7.10rpm | 335N.m | 44Kg | 10900N | 1.80 |
| FF57DT71S4 | 157.09 | 0.25KW | 8.30rpm | 285N.m | 44Kg | 11200N | 2.10 |
| FF57DT71S4 | 136.16 | 0.25KW | 9.60rpm | 250N.m | 44Kg | 11400N | 2.40 |
| FF57DT71S4 | 127.27 | 0.25KW | 10.0rpm | 230N.m | 44Kg | 11500N | 2.60 |
| FF57DT71S4 | 110.01 | 0.25KW | 12.0rpm | 200N.m | 44Kg | 11500N | 3.00 |
FF57DM71S4齒輪減速機馬達類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

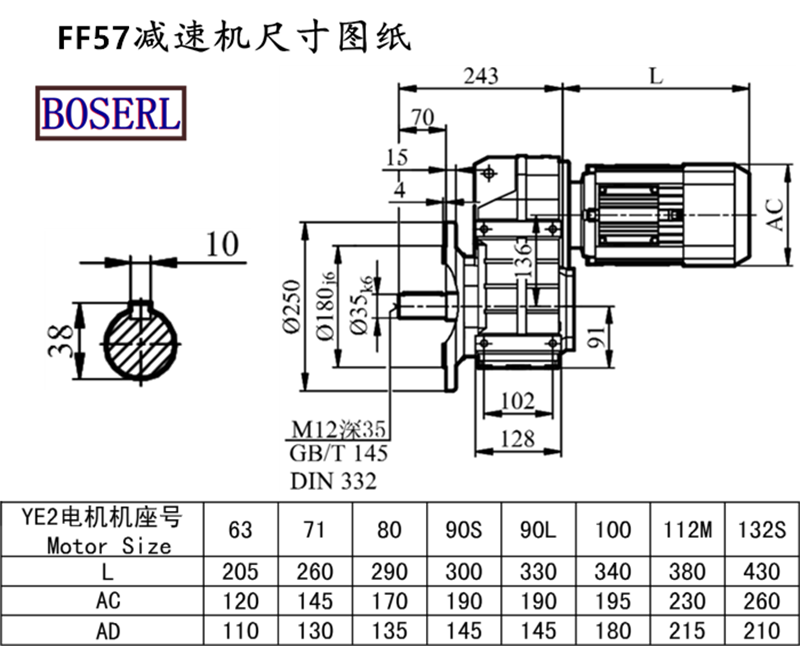

FF57DM71S4齒輪減速機馬達安裝尺寸圖紙
FF57DM71S4齒輪減速機馬達生產廠家，看廠請?zhí)崆叭祛A(yù)約三項異步調速電機減速機
關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家
FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機
FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 2.2KW電機與減速器一體機 FF57DM71S4 FF57DT71S4
