FF27DRE71S4詳細信息
FF27DRE71S4
訂購熱線：13360667204
關鍵詞：一分鐘202轉減速機電機_FF27DRE71S4_FF27DVE71S4
FF27DRE71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF27DRE71S4 | 77.21 | 0.25KW | 17.0rpm | 142N.m | 20Kg | 4500N | 0.90 |
| FF27DRE71S4 | 72.37 | 0.25KW | 18.0rpm | 133N.m | 20Kg | 4500N | 1.00 |
| FF27DRE71S4 | 63.86 | 0.25KW | 20.0rpm | 117N.m | 20Kg | 4500N | 1.10 |
| FF27DRE71S4 | 56.62 | 0.25KW | 23.0rpm | 104N.m | 20Kg | 4500N | 1.25 |
| FF27DRE71S4 | 50.19 | 0.25KW | 26.0rpm | 92N.m | 20Kg | 4440N | 1.40 |
| FF27DRE71S4 | 46.78 | 0.25KW | 28.0rpm | 86N.m | 20Kg | 4370N | 1.50 |
| FF27DRE71S4 | 40.89 | 0.25KW | 32.0rpm | 75N.m | 20Kg | 4240N | 1.75 |
| FF27DRE71S4 | 38.33 | 0.25KW | 34.0rpm | 70N.m | 20Kg | 4180N | 1.85 |
| FF27DRE71S4 | 33.83 | 0.25KW | 38.0rpm | 62N.m | 20Kg | 4060N | 2.10 |
| FF27DRE71S4 | 29.56 | 0.25KW | 44.0rpm | 54N.m | 20Kg | 3920N | 2.40 |
| FF27DRE71S4 | 27.18 | 0.25KW | 48.0rpm | 50N.m | 20Kg | 3840N | 2.60 |
| FF27DRE71S4 | 23.25 | 0.25KW | 56.0rpm | 43N.m | 20Kg | 3690N | 3.00 |
| FF27DRE71S4 | 20.15 | 0.25KW | 64.0rpm | 37N.m | 20Kg | 3550N | 3.50 |
| FF27DRE71S4 | 18.84 | 0.25KW | 69.0rpm | 35N.m | 20Kg | 3480N | 3.80 |
| FF27DRE71S4 | 16.28 | 0.25KW | 80.0rpm | 30N.m | 20Kg | 3350N | 4.40 |
| FF27DRE71S4 | 13.84 | 0.25KW | 94.0rpm | 25N.m | 20Kg | 3200N | 5.10 |
| FF27DRE71S4 | 12.35 | 0.25KW | 105rpm | 23N.m | 20Kg | 3090N | 5.70 |
| FF27DRE71S4 | 10.55 | 0.25KW | 123rpm | 19N.m | 20Kg | 2950N | 6.70 |
| FF27DRE71S4 | 9.88 | 0.25KW | 132rpm | 18N.m | 20Kg | 2900N | 7.20 |
| FF27DRE71S4 | 9.40 | 0.25KW | 138rpm | 17N.m | 20Kg | 2840N | 7.50 |
| FF27DRE71S4 | 8.13 | 0.25KW | 160rpm | 15N.m | 20Kg | 2720N | 8.30 |
| FF27DRE71S4 | 6.91 | 0.25KW | 188rpm | 13N.m | 20Kg | 2590N | 9.00 |
| FF27DRE71S4 | 6.17 | 0.25KW | 211rpm | 11N.m | 20Kg | 2500N | 9.60 |
| FF27DRE71S4 | 5.27 | 0.25KW | 247rpm | 9.7N.m | 20Kg | 2380N | 10.0 |
| FF27DRE71S4 | 4.93 | 0.25KW | 264rpm | 9.1N.m | 20Kg | 2340N | 11.0 |
| FF27DRE71S4 | 4.16 | 0.25KW | 313rpm | 7.6N.m | 20Kg | 2220N | 11.0 |
FF27DVE71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF27DVE71S4 | 77.21 | 0.25KW | 17.0rpm | 142N.m | 20Kg | 4500N | 0.90 |
| FF27DVE71S4 | 72.37 | 0.25KW | 18.0rpm | 133N.m | 20Kg | 4500N | 1.00 |
| FF27DVE71S4 | 63.86 | 0.25KW | 20.0rpm | 117N.m | 20Kg | 4500N | 1.10 |
| FF27DVE71S4 | 56.62 | 0.25KW | 23.0rpm | 104N.m | 20Kg | 4500N | 1.25 |
| FF27DVE71S4 | 50.19 | 0.25KW | 26.0rpm | 92N.m | 20Kg | 4440N | 1.40 |
| FF27DVE71S4 | 46.78 | 0.25KW | 28.0rpm | 86N.m | 20Kg | 4370N | 1.50 |
| FF27DVE71S4 | 40.89 | 0.25KW | 32.0rpm | 75N.m | 20Kg | 4240N | 1.75 |
| FF27DVE71S4 | 38.33 | 0.25KW | 34.0rpm | 70N.m | 20Kg | 4180N | 1.85 |
| FF27DVE71S4 | 33.83 | 0.25KW | 38.0rpm | 62N.m | 20Kg | 4060N | 2.10 |
| FF27DVE71S4 | 29.56 | 0.25KW | 44.0rpm | 54N.m | 20Kg | 3920N | 2.40 |
| FF27DVE71S4 | 27.18 | 0.25KW | 48.0rpm | 50N.m | 20Kg | 3840N | 2.60 |
| FF27DVE71S4 | 23.25 | 0.25KW | 56.0rpm | 43N.m | 20Kg | 3690N | 3.00 |
| FF27DVE71S4 | 20.15 | 0.25KW | 64.0rpm | 37N.m | 20Kg | 3550N | 3.50 |
| FF27DVE71S4 | 18.84 | 0.25KW | 69.0rpm | 35N.m | 20Kg | 3480N | 3.80 |
| FF27DVE71S4 | 16.28 | 0.25KW | 80.0rpm | 30N.m | 20Kg | 3350N | 4.40 |
| FF27DVE71S4 | 13.84 | 0.25KW | 94.0rpm | 25N.m | 20Kg | 3200N | 5.10 |
| FF27DVE71S4 | 12.35 | 0.25KW | 105rpm | 23N.m | 20Kg | 3090N | 5.70 |
| FF27DVE71S4 | 10.55 | 0.25KW | 123rpm | 19N.m | 20Kg | 2950N | 6.70 |
| FF27DVE71S4 | 9.88 | 0.25KW | 132rpm | 18N.m | 20Kg | 2900N | 7.20 |
| FF27DVE71S4 | 9.40 | 0.25KW | 138rpm | 17N.m | 20Kg | 2840N | 7.50 |
| FF27DVE71S4 | 8.13 | 0.25KW | 160rpm | 15N.m | 20Kg | 2720N | 8.30 |
| FF27DVE71S4 | 6.91 | 0.25KW | 188rpm | 13N.m | 20Kg | 2590N | 9.00 |
| FF27DVE71S4 | 6.17 | 0.25KW | 211rpm | 11N.m | 20Kg | 2500N | 9.60 |
| FF27DVE71S4 | 5.27 | 0.25KW | 247rpm | 9.7N.m | 20Kg | 2380N | 10.0 |
| FF27DVE71S4 | 4.93 | 0.25KW | 264rpm | 9.1N.m | 20Kg | 2340N | 11.0 |
| FF27DVE71S4 | 4.16 | 0.25KW | 313rpm | 7.6N.m | 20Kg | 2220N | 11.0 |
FF27DRE71S4齒輪減速機馬達類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

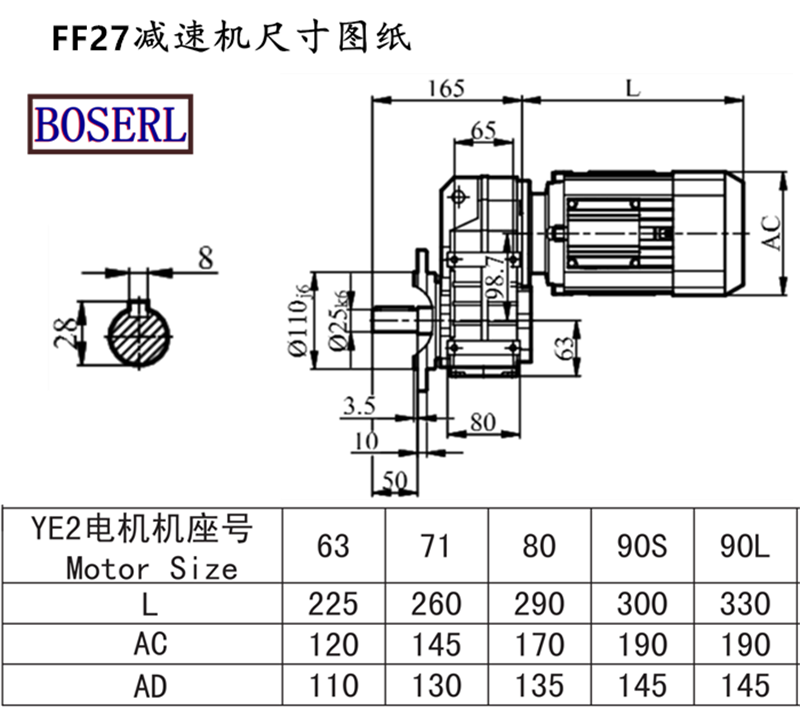

FF27DRE71S4齒輪減速機馬達安裝尺寸圖紙
FF27DRE71S4齒輪減速機馬達生產廠家，看廠請提前三天預約三項異步調速電機減速機
關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家
FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機
FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 一分鐘202轉減速機電機 FF27DRE71S4 FF27DVE71S4
- 上一條FF27DRE71D4
- 下一條FF27DM71D4
