FF107DRN160L4詳細信息
FF107DRN160L4
關鍵詞：跑道減速機電機_FF107DRN160L4_FF107DRN160MC4
FF107DRN160L4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF107DRN160L4 | 92.47 | 15KW | 16.0rpm | 9040N.m | 537kg | 46000N | 0.85 |
| FF107DRN160L4 | 88.49 | 15KW | 17.0rpm | 8650N.m | 537kg | 47100N | 0.90 |
| FF107DRN160L4 | 83.99 | 15KW | 17.0rpm | 8210N.m | 537kg | 48400N | 0.95 |
| FF107DRN160L4 | 74.52 | 15KW | 20.0rpm | 7280N.m | 537kg | 50800N | 1.05 |
| FF107DRN160L4 | 67.62 | 15KW | 22.0rpm | 6610N.m | 537kg | 52600N | 1.15 |
| FF107DRN160L4 | 58.12 | 15KW | 25.0rpm | 5680N.m | 537kg | 52200N | 1.35 |
| FF107DRN160L4 | 50.73 | 15KW | 29.0rpm | 4960N.m | 537kg | 51500N | 1.55 |
| FF107DRN160L4 | 43.03 | 15KW | 34.0rpm | 4200N.m | 537kg | 50300N | 1.85 |
| FF107DRN160L4 | 37.61 | 15KW | 39.0rpm | 3670N.m | 537kg | 49300N | 2.10 |
| FF107DRN160L4 | 31.80 | 15KW | 46.0rpm | 3100N.m | 537kg | 47900N | 2.50 |
| FF107DRN160L4 | 33.79 | 15KW | 43.0rpm | 3300N.m | 537kg | 48400N | 2.20 |
| FF107DRN160L4 | 27.57 | 15KW | 53.0rpm | 2690N.m | 537kg | 46700N | 2.90 |
| FF107DRN160L4 | 25.14 | 15KW | 58.0rpm | 2450N.m | 537kg | 45800N | 3.20 |
| FF107DRN160L4 | 21.76 | 15KW | 67.0rpm | 2120N.m | 537kg | 44500N | 3.70 |
FF107DRN160MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF107DRN160MC4 | 117.94 | 11KW | 13.0rpm | 8390N.m | 517kg | 47900N | 0.90 |
| FF107DRN160MC4 | 101.38 | 11KW | 15.0rpm | 7210N.m | 517kg | 51000N | 1.05 |
| FF107DRN160MC4 | 92.47 | 11KW | 16.0rpm | 6580N.m | 517kg | 52600N | 1.15 |
| FF107DRN160MC4 | 83.99 | 11KW | 18.0rpm | 5980N.m | 517kg | 54100N | 1.30 |
| FF107DRN160MC4 | 74.52 | 11KW | 20.0rpm | 5300N.m | 517kg | 55600N | 1.45 |
| FF107DRN160MC4 | 67.62 | 11KW | 22.0rpm | 4810N.m | 517kg | 56700N | 1.60 |
| FF107DRN160MC4 | 58.12 | 11KW | 25.0rpm | 4130N.m | 517kg | 56200N | 1.85 |
| FF107DRN160MC4 | 50.73 | 11KW | 29.0rpm | 3610N.m | 517kg | 54900N | 2.10 |
| FF107DRN160MC4 | 43.03 | 11KW | 34.0rpm | 3060N.m | 517kg | 53300N | 2.50 |
| FF107DRN160MC4 | 33.79 | 11KW | 44.0rpm | 2400N.m | 517kg | 50700N | 3.10 |
| FF107DRN160MC4 | 27.57 | 11KW | 54.0rpm | 1960N.m | 517kg | 48500N | 4.00 |
| FF107DRN160MC4 | 25.14 | 11KW | 59.0rpm | 1790N.m | 517kg | 47500N | 4.40 |
FF107DRN160L4電動機減速機類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

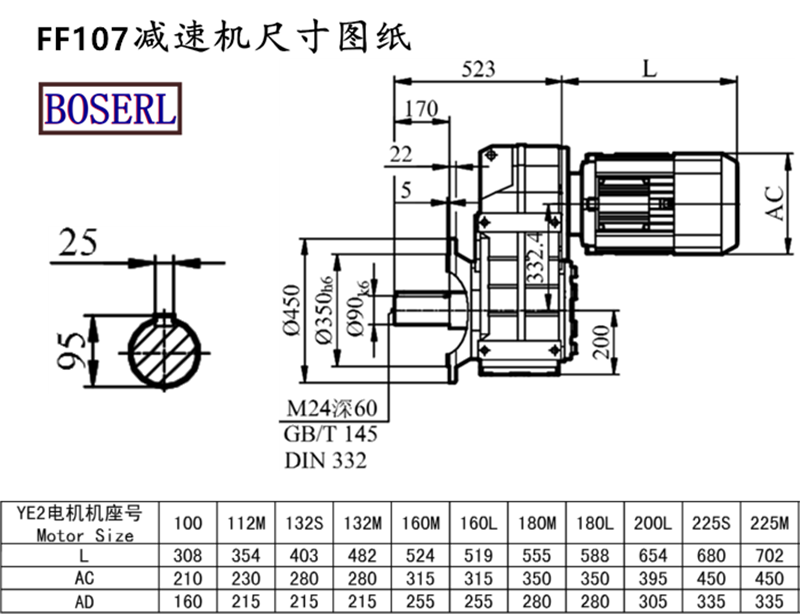

FF107DRN160L4電動機減速機安裝尺寸圖紙
FF107DRN160L4電動機減速機生產廠家，看廠請?zhí)崆叭祛A(yù)約三項異步調速電機減速機
關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家
FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機
FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
