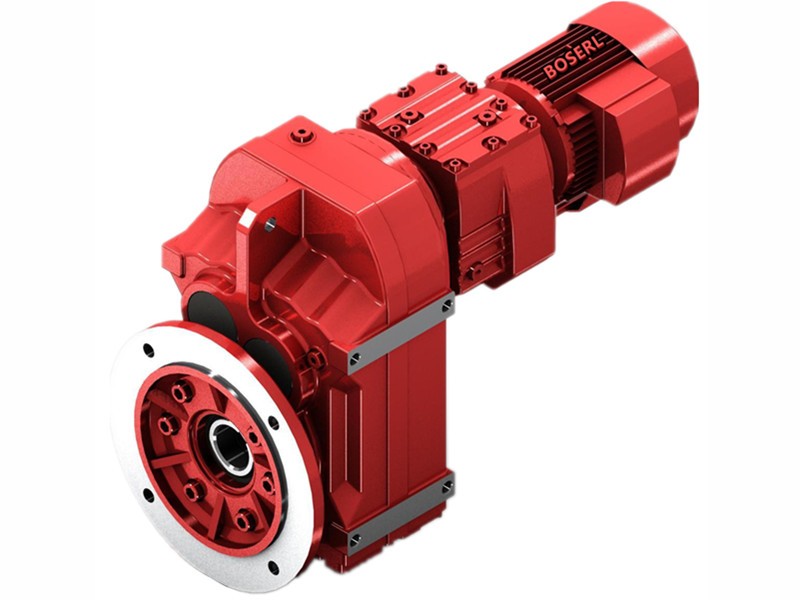

FAF77R37DV71S4詳細信息
FAF77R37DV71S4
關鍵詞：2P110KW平行軸斜齒輪減速馬達_FAF77R37DV71S4_FAF77R37DRN80MK4
FAF77R37DV71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF77R37DV71S4 | 1053 | 0.25KW | 1.20r/min | 1740N.m | 108.5kg | 13900N | 0.85 |
| FAF77R37DV71S4 | 910 | 0.25KW | 1.40r/min | 1490N.m | 108.5kg | 15700N | 1.00 |
| FAF77R37DV71S4 | 810 | 0.25KW | 1.60r/min | 1290N.m | 108.5kg | 16900N | 1.15 |
| FAF77R37DV71S4 | 710 | 0.25KW | 1.80r/min | 1130N.m | 108.5kg | 17700N | 1.30 |
| FAF77R37DV71S4 | 615 | 0.25KW | 2.10r/min | 1000N.m | 108.5kg | 18300N | 1.50 |
| FAF77R37DV71S4 | 538 | 0.25KW | 2.40r/min | 870N.m | 108.5kg | 18700N | 1.70 |
| FAF77R37DV71S4 | 480 | 0.25KW | 2.70r/min | 775N.m | 108.5kg | 19000N | 1.95 |
| FAF77R37DV71S4 | 413 | 0.25KW | 3.20r/min | 660N.m | 108.5kg | 19400N | 2.30 |
FAF77R37DRN80MK4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF77R37DRN80MK4 | 480 | 0.55KW | 2.90r/min | 1660N.m | 113.5kg | 14500N | 0.90 |
| FAF77R37DRN80MK4 | 413 | 0.55KW | 3.40r/min | 1420N.m | 113.5kg | 16200N | 1.05 |
| FAF77R37DRN80MK4 | 367 | 0.55KW | 3.80r/min | 1270N.m | 113.5kg | 17100N | 1.20 |
| FAF77R37DRN80MK4 | 323 | 0.55KW | 4.30r/min | 1120N.m | 113.5kg | 17800N | 1.35 |

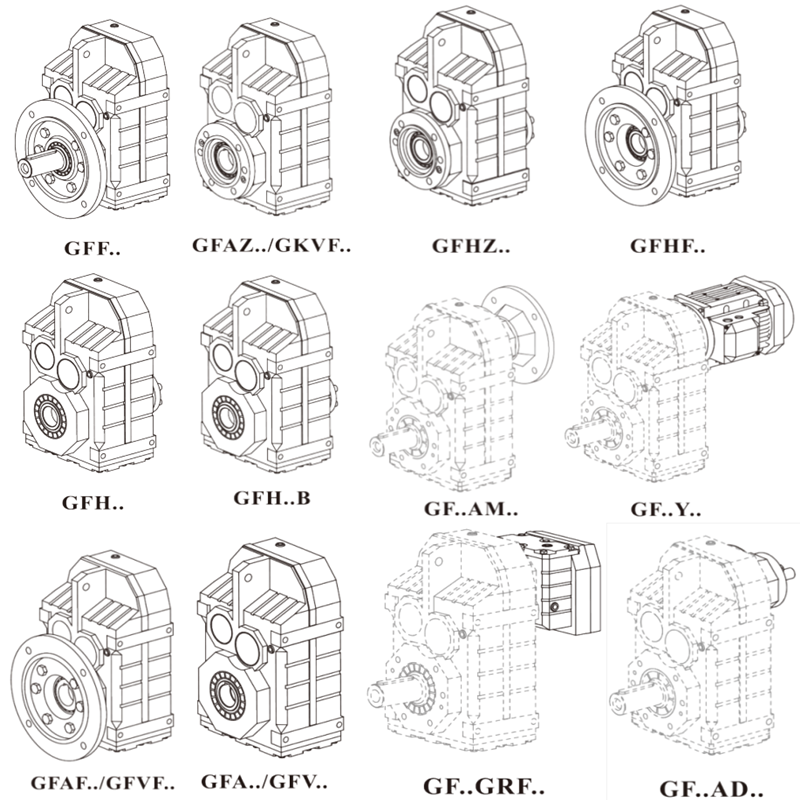

FAF77R37DV71S4減速機電動機類型：
F77R37DV71S4底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA77BR37DV71S4底腳空心軸安裝平行軸—斜齒輪減速機
FV77BR37DV71S4底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA77R37DV71S4空心軸安裝平行軸—斜齒輪減速機
FV77R37DV71S4花鍵空心軸安裝平行軸—斜齒輪減速機
FAF77R37DV71S4是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF77R37DV71S4是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ77R37DV71S4是B14法蘭安裝平行軸—斜齒輪減速機
FVZ77R37DV71S4是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF77R37DV71S4是B5法蘭安裝平行軸—斜齒輪減速機
FH77BR37DV71S4底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH77R37DV71S4是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF77R37DV71S4是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ77R37DV71S4是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

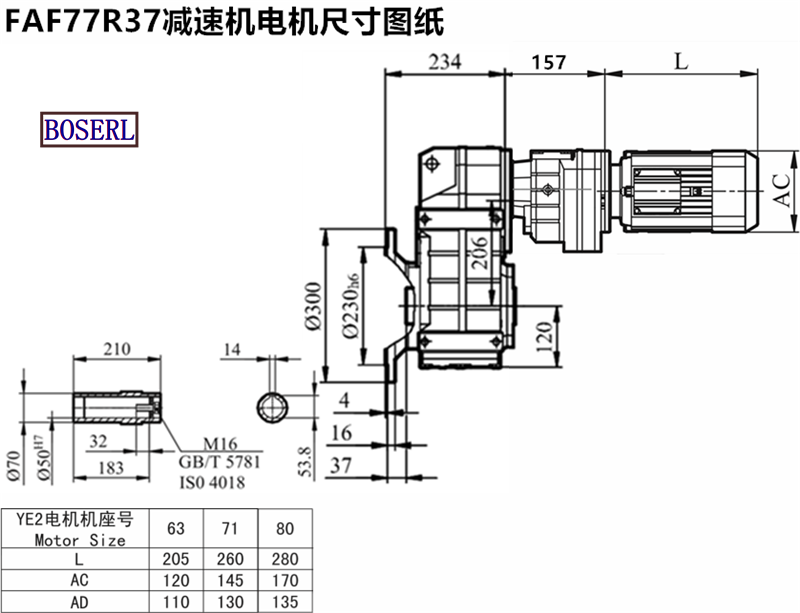

FAF77R37DV71S4減速機電動機安裝尺寸圖紙
FAF77R37DV71S4減速機電動機生產廠家，看廠請提前三天預約三相220V電機減速機
關鍵詞:FAF系列減速機與電機_220V電機減速機一套_三相220V電機減速器_380V電機減速機_三相380V電機減速器_三相減速電機_三相減速機生產廠家
FAF系列減速機型號：FAF27減速機,FAF37減速機,FAF47減速機,FAF67減速機,FAF77減速機,FAF87減速機,FAF97減速機,FAF107減速機,FAF127減速機,FAF157減速機
FAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 2P110KW平行軸斜齒輪減速馬達 FAF77R37DV71S4 FAF77R37DRN80MK4
- 上一條FAF77R37DV63L4
- 下一條FAF77R37DV63S4
